Compact Cryogenic Tunnel Freezers Maximum Efficiency
Experience flexibility and efficiency in cryogenic freezing while maintaining a smaller footprint. Designed for space-conscious environments, this system allows you to achieve exceptional product quality without compromising on capacity.
Optimized Production
Designed for versatility, the Compact Tunnel Freezer is available in 1 or 3-tier configurations, allowing you to maximize throughput while saving time and space. Its modular design ensures quick installation and easy scalability, making it perfect for growing operations.
Built to Last
Featuring a corrosion-resistant stainless steel or fiberglass outer shell for superior thermal insulation and stainless-steel internal components, these compact freezers are built for long-lasting performance in challenging environments. Its food-grade construction makes it perfect for food processing, pharmaceutical manufacturing, chemical storage, and medical-grade freezing applications.
Reliable Freezing

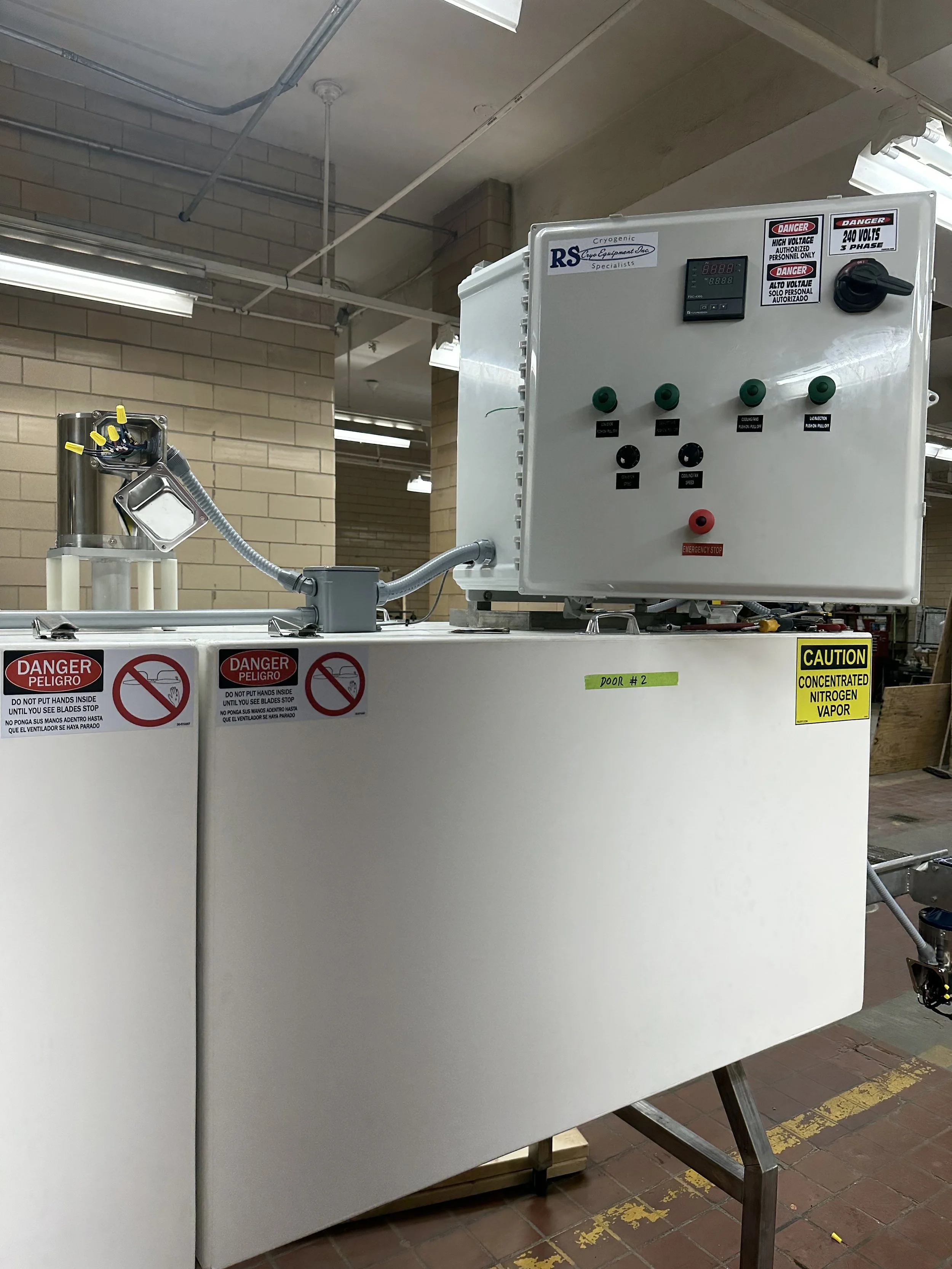

Equipped with an advanced control system, our Compact Tunnel Freezers optimize gas injection rates to use CO2 or nitrogen efficiently. This reduces operating costs while preventing dry ice build-up, ensuring doors never freeze shut and operations remain uninterrupted.

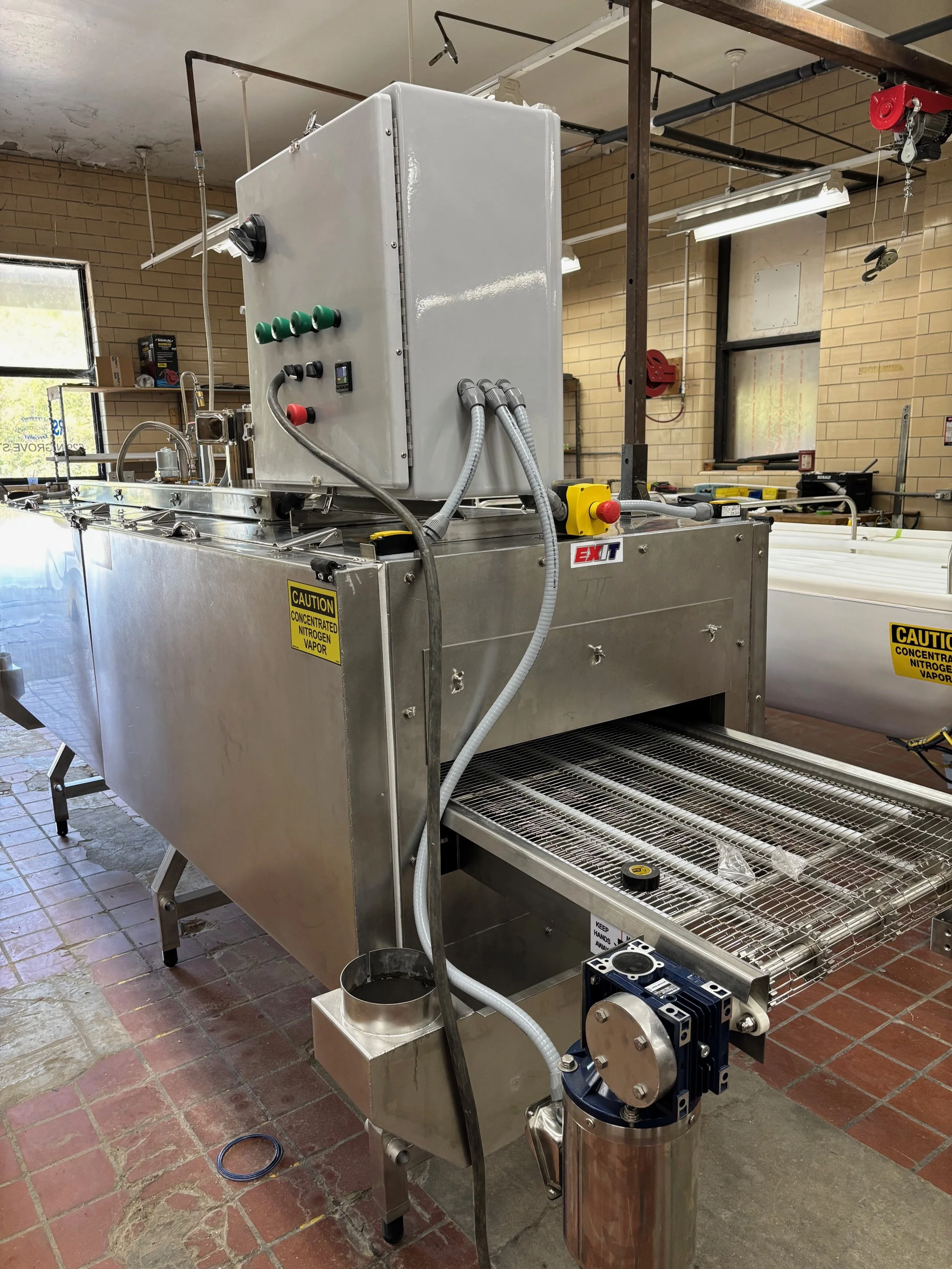

Easy Maintenance
Our Compact Tunnel Freezers are crafted with simplicity in mind. The modular design allows for easy cleaning and maintenance to maximize uptime. Food-grade materials and hygienic surfaces meet the highest sanitation standards, making them an ideal choice for industries that require strict hygiene protocols.
Reliable Gas Movement
We offer 1” insulated copper pipes that are ideal for cryogenic setups, to deliver fresh CO2 or LN2 to freezers safely and efficiently. Our high-pressure direct-drive exhaust blowers are equipped with a housing and blower wheel designed to move used LN2 or LCO2 through long airways.

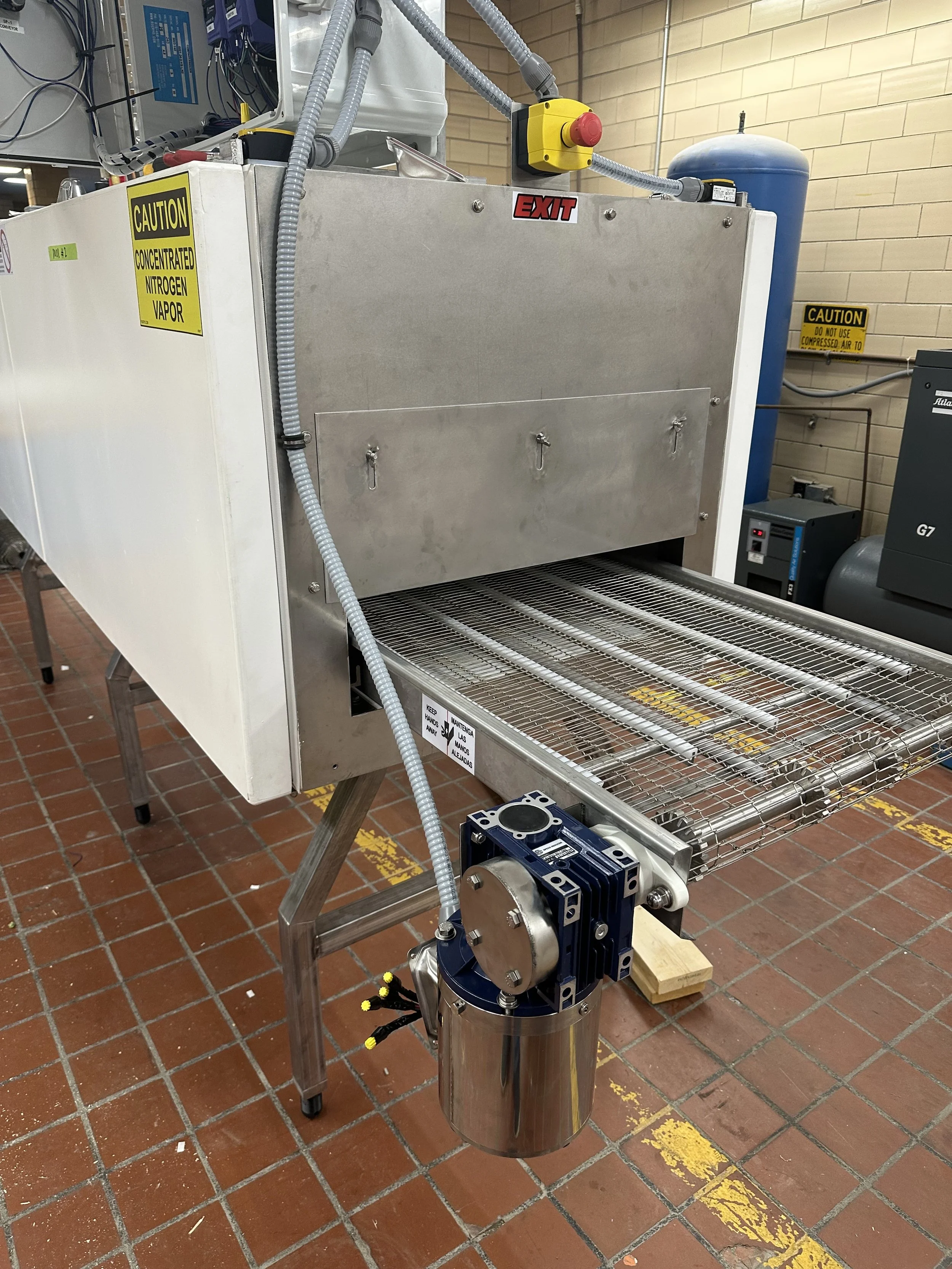

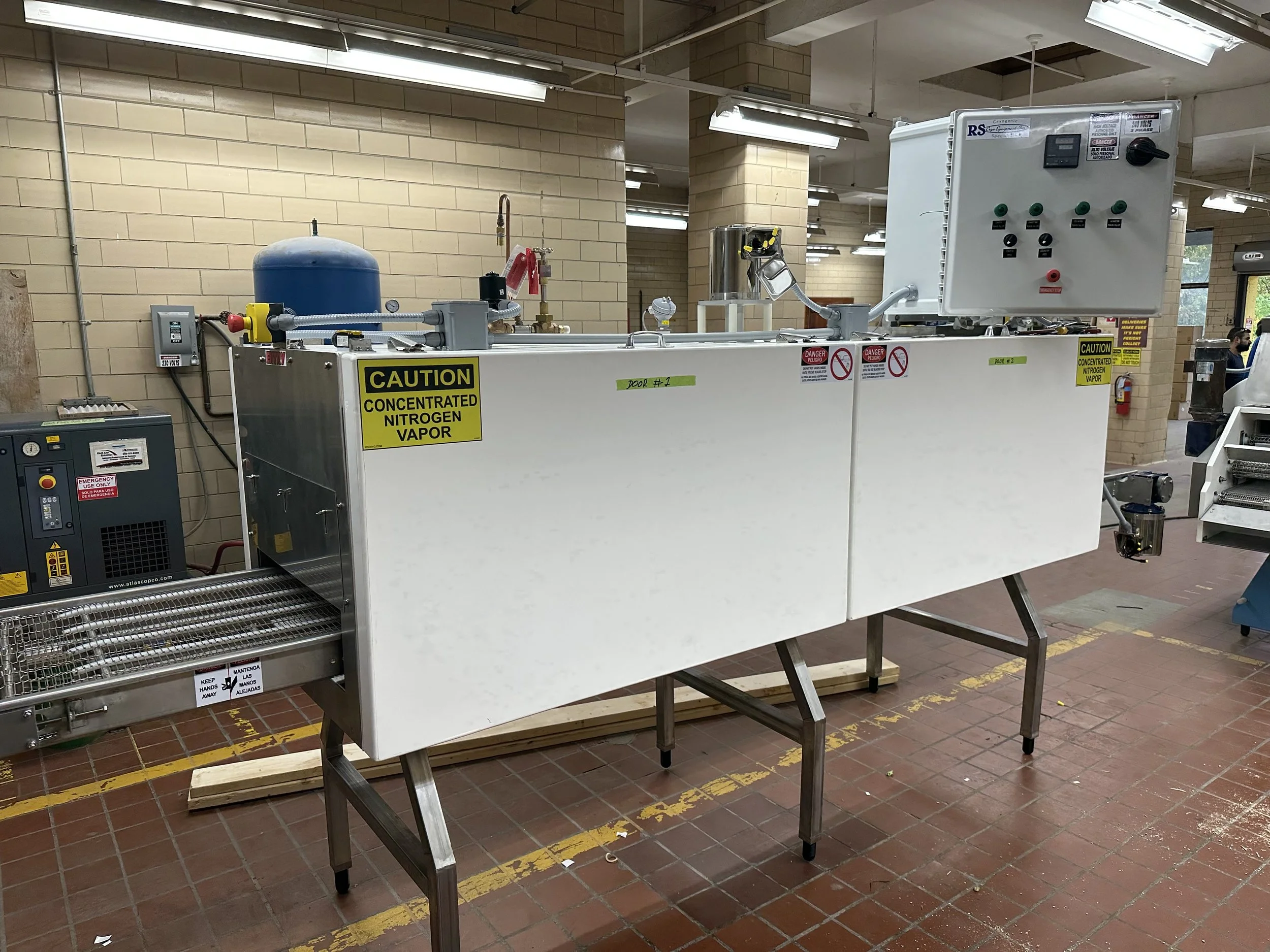

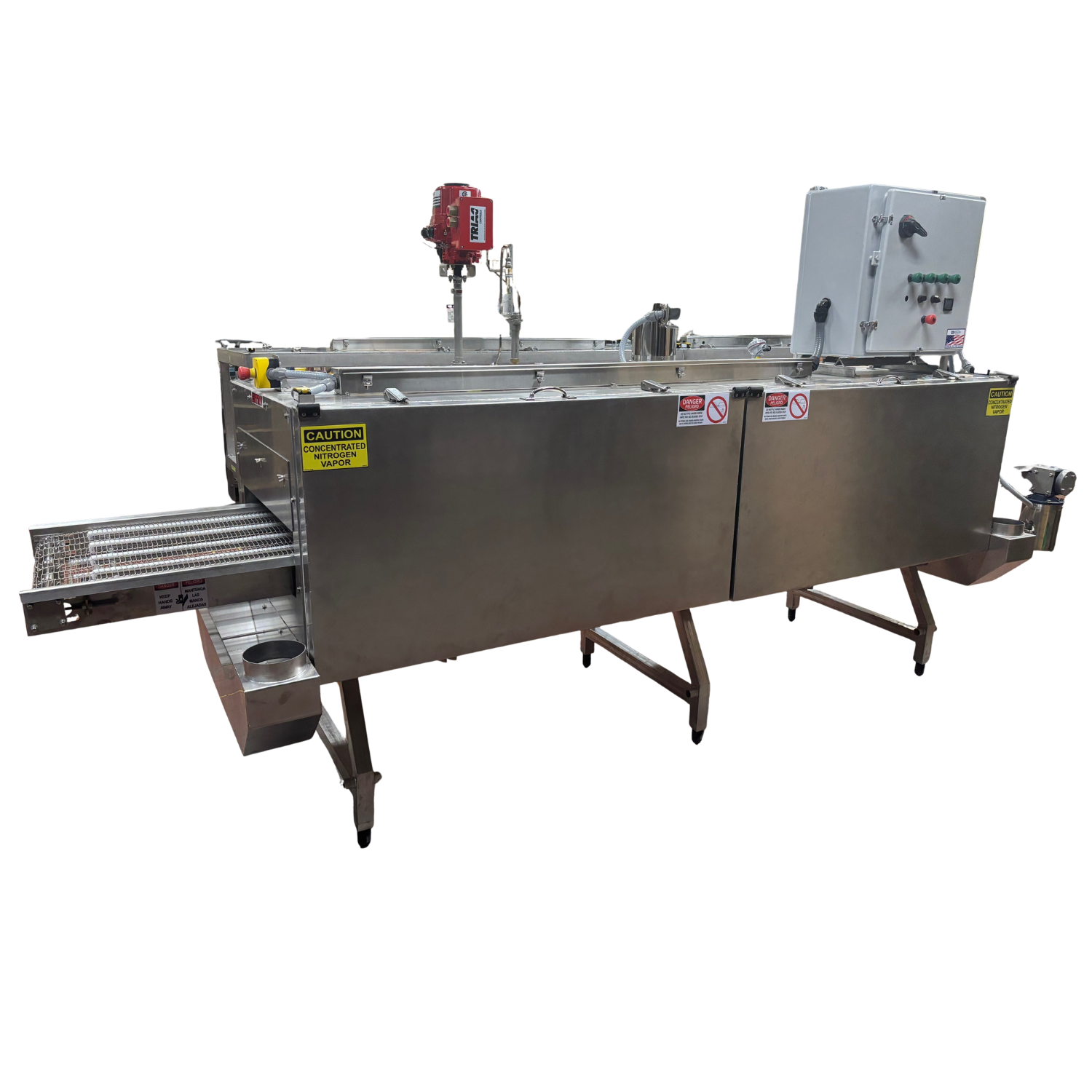

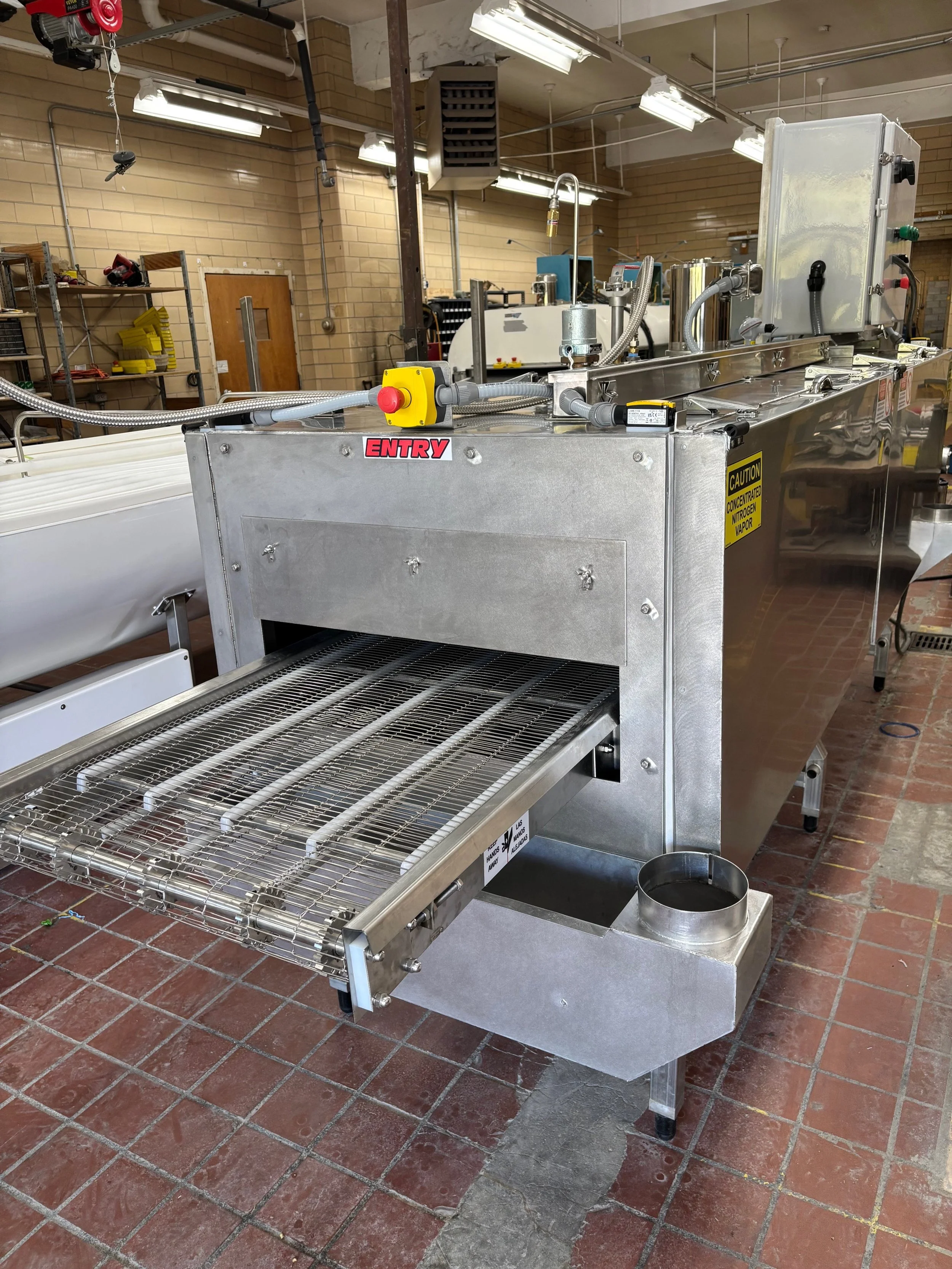

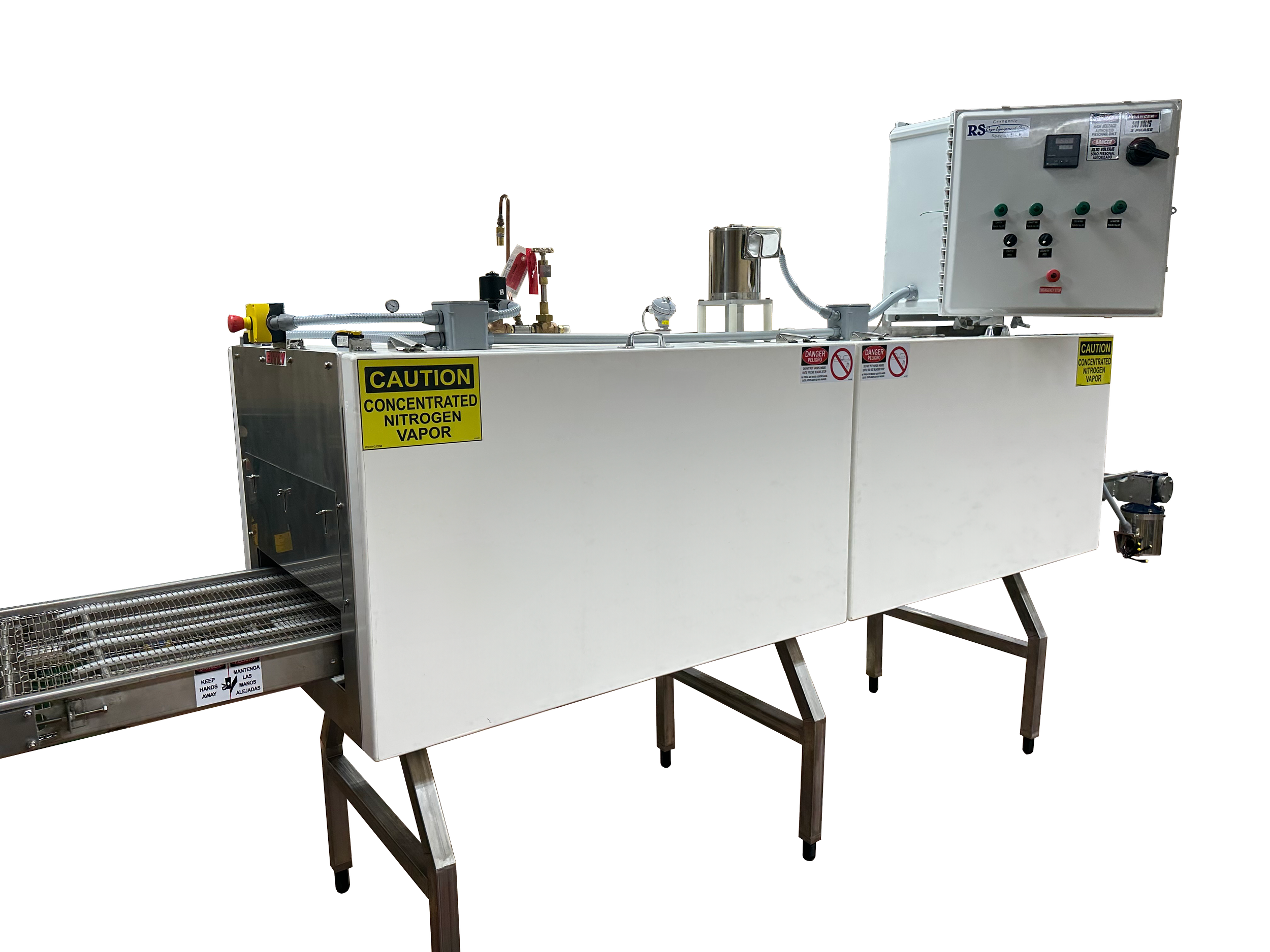

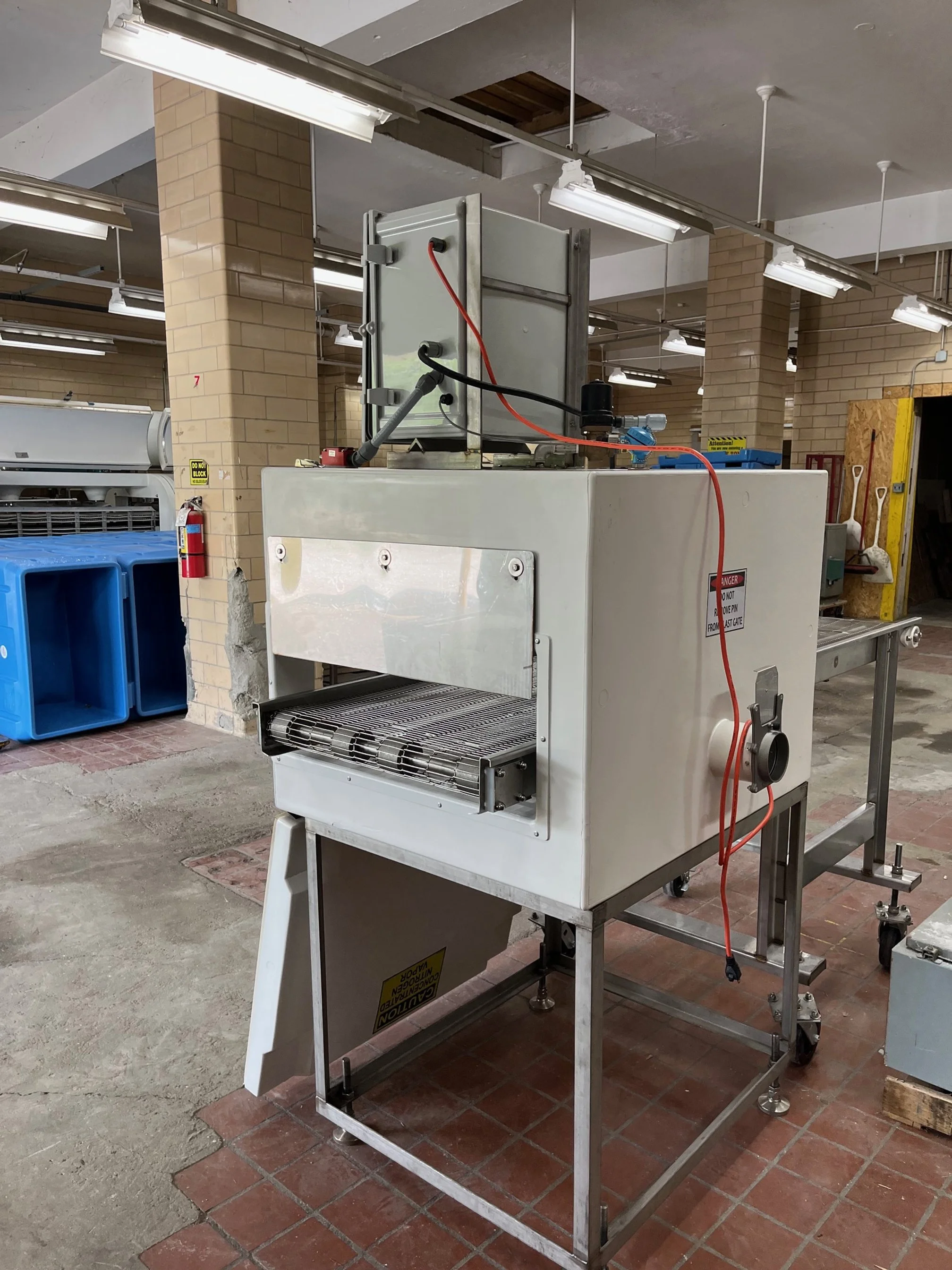

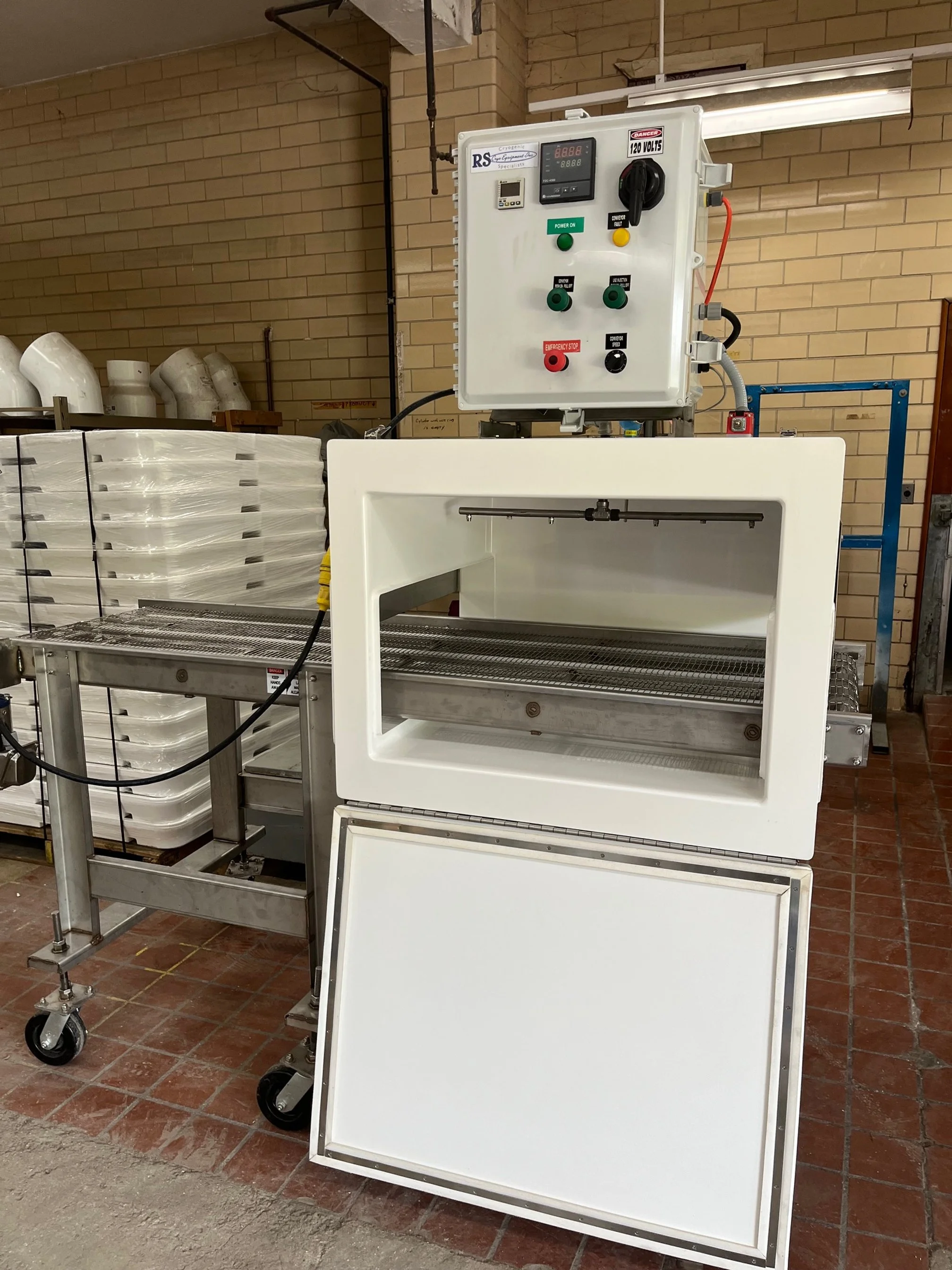

Your Choice: Stainless Steel or Fiberglass Outer Shell

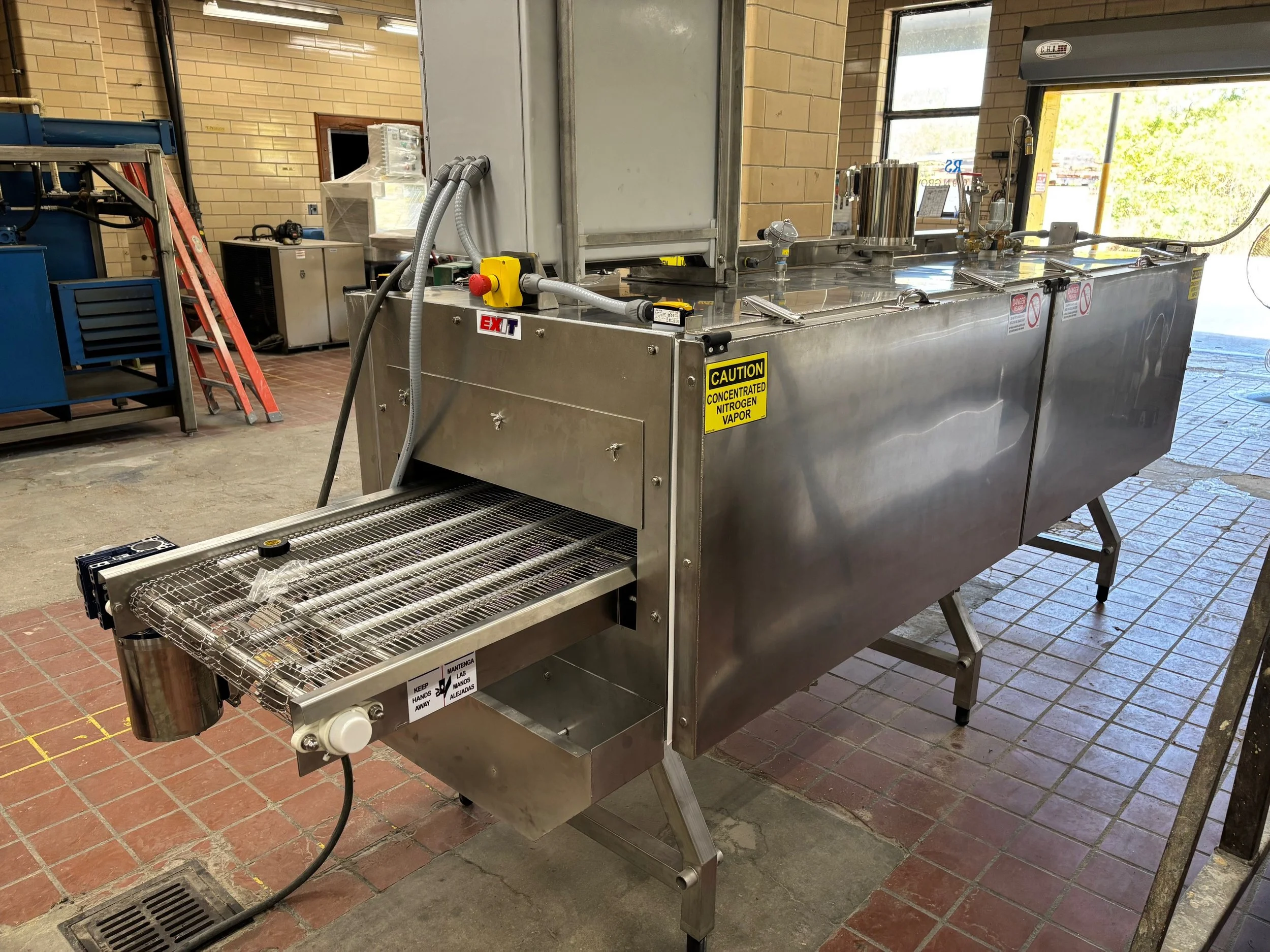

Our Compact Tunnel Freezers are available in multiple lengths ranging from 13.5’ to 60’, with 1 or 3-tier configurations. The 3-tier design provides up to three times the throughput capacity of single-tier options while maintaining the same footprint.
Lower Costs, Faster Start-Up
Our Compact Tunnel Freezers have a lower initial investment than mechanical systems. With scalable design options and shorter delivery and installation lead times, you can get up and running faster.
Compact Tunnel Freezer Options to Meet Your Unique Needs
Depending on your specific application and environment, consider the following Ultra-Freeze options
Compatible with both CO2 and Nitrogen gases.
3-tier system suitable for products that can flip over and fit within a 3-inch clearance height.

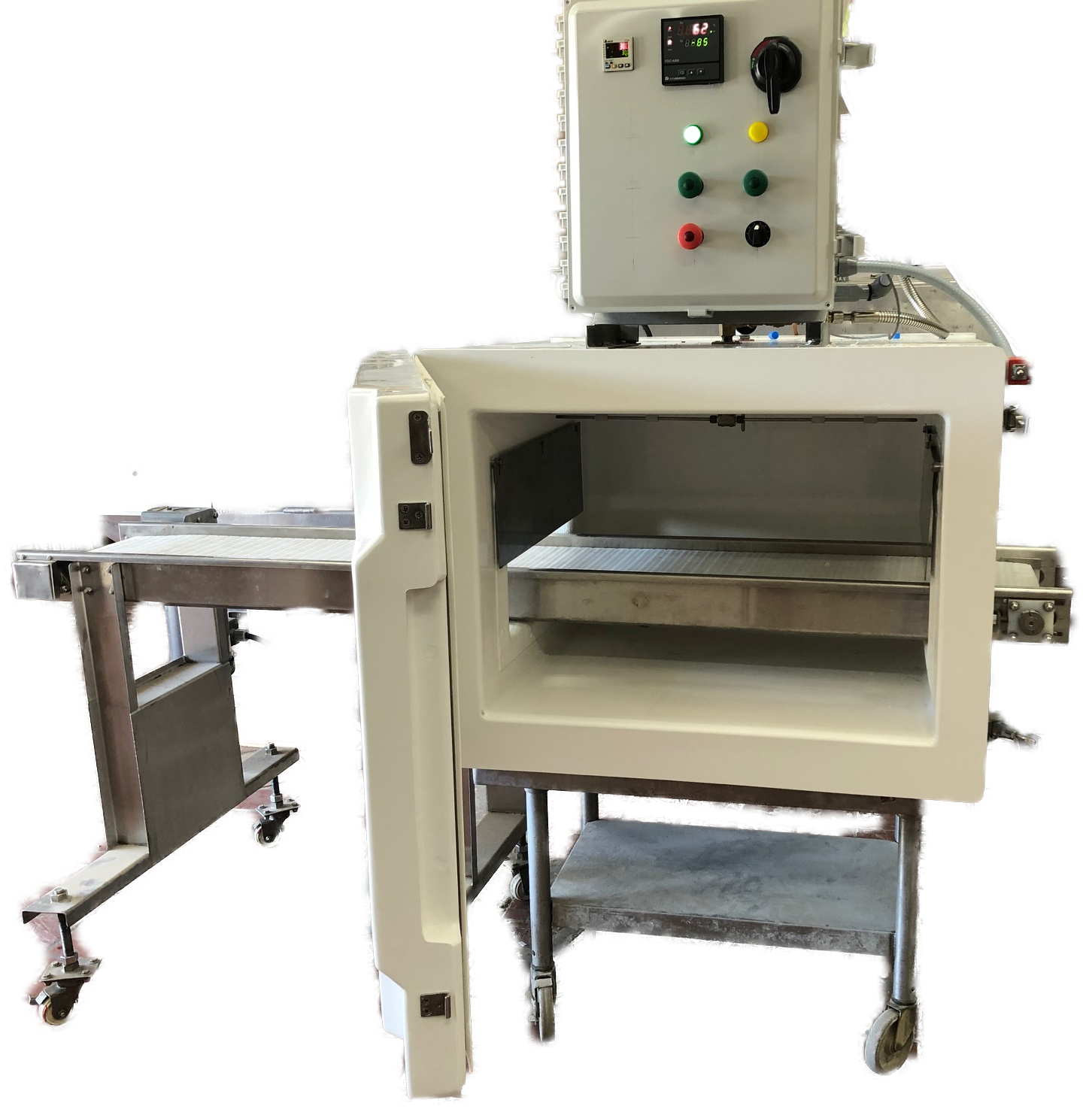

The conveyor Belt is on wheels for easy removal on our 1-module unit.
Custom straight conveyer configurations are available based on your specifications.
| Specifications | ||
| Conveyor Tiers | 1-Tier option | |
| Product clearance | 7.25 inches | |
| D3-Tier option Product clearance | 4 inches | |
| Available Lengths | 13.5 ft. to 60 ft. | |
| Conveyor Widths | 24", 30", or 48" | |
| Electrical | 230V, 60Hz, 30 Amp | |
| Temperature Range | Operational down to -125°F (-87°C) | |
| Gas Capability | Automatic and adjustable injection systems for CO2 or Nitrogen (N2) | |
Compact Tunnel Freezer Specifications
RECEIVE A FREE DWELLTIME TEST REPORT FOR YOUR PRODUCTS
